Polyester vandal-proof railway lights IP65

Sets rail traffic light heads are made of thermosetting press materials for the new SMC-technology (fiberglass-reinforced material). Designed to replace traditional light signal heads made of ABS plastic and metal incandescent or diode sets. In Belarus, the company JCSC "LIPLAST-SPb" only one who is engaged in a complete cycle production of vandal-proof rail traffic light heads from polyester.

• traffic lights mast (with masts, stairs and fastenings or separately);
• traffic lights, shunting, dwarf (with a foundation, transformer boxes, cable boxes, stands, etc.);
• Traffic lights (with a detector, foundation, rack, transformer boxes, cable couplings, etc.);
• Traffic lights pedestrian (with a detector, foundation, rack, transformer boxes, cable clutches, etc.);
• cable and track box couplings (together with safety pipes and crosspieces, with a locking device and lead-in glands).

All components of traffic lights, couplings, track boxes are made of composite SMS-material reinforced with fiberglass.

Sets rail traffic lights are manufactured in compliance with the specifications and BY 500015511.011-2014 BY 500015511.009-2014. All stated specifications are tested at the Belarusian State Institute of Standardization and Certification. The system of management and quality of products from the production of plastics and composite materials meet the requirements of STB ISO 9001-2009.

All metal parts and assembly units have a protective coating "Galvanizing" according to GOST 9.307-89, taking into account the operating conditions relating to the group of "5" in accordance with GOST 15150. Welds comply with class 1 on the STB 1016, and executed by GOST1471. Fasteners with protection against loosening. It is possible to use locks and hardware from stainless steel.

  • Climatic performance: UHL1 according to GOST 15150.
  • Protection of traffic lights heads (lenses or LEDs) from external influences IP54 according to GOST 14254.
  • Degree of protection against mechanical impacts: IK10.
  • Operating temperature: up + 70°C to -60ºC.
  • Light heads are designed for installation of the LED lamp.
  • Protection of input cables: IP65.

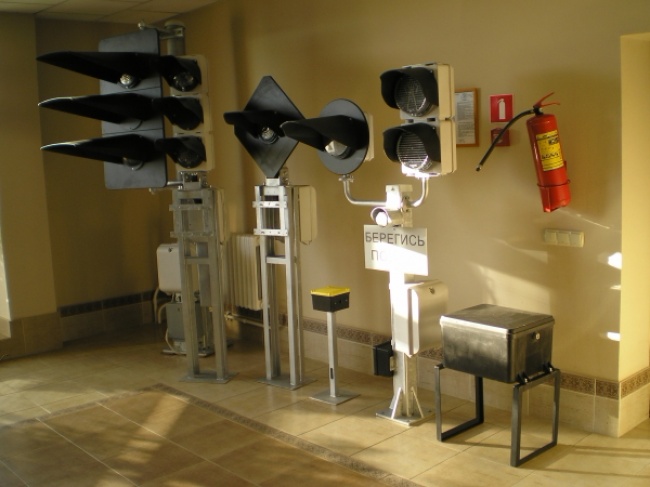

Catalog railway traffic lights (complete)

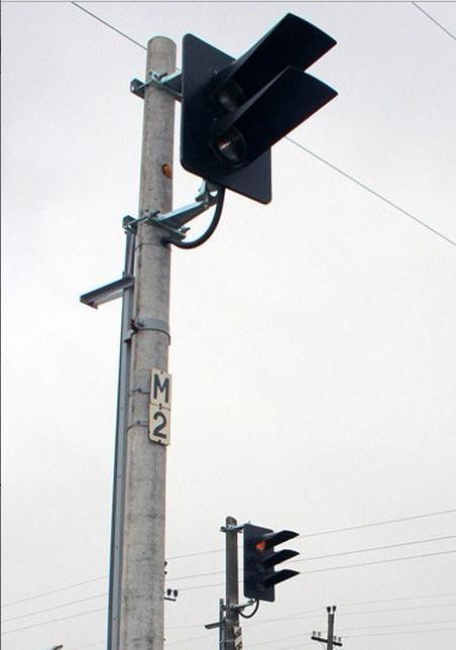

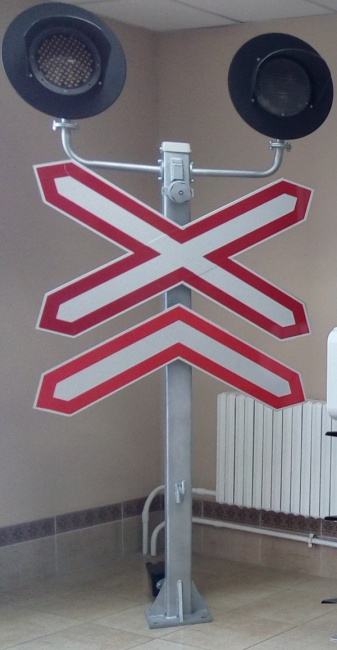

Railway crossing traffic lights
Foto Type Complectation Net weight, kg
1 SP2-1 и SP2-2 traffic light head IP65 2 pcs., mast foundation, mark the headset, the headset plates, adjusting bracket -
2 SP3-1 и SP3-2 traffic light head IP65 3 pcs., mast foundation, mark the headset, the headset plates, adjusting bracket -
Traffic light pedestrian crossing
 1    ЯТВИ.14709-00-00-001-01 traffic light head IP65 2 pcs., mast foundation, mark the headset, the headset plates, adjusting bracket, coupling КСУ-25, an acoustic detector redundant.  -
 2    ЯТВИ.14709-00-00-001-02 traffic light head IP65 2 pcs., mast foundation, mark the headset, the headset plates, adjusting bracket, IP65 transformer box (-4), an acoustic detector redundant.

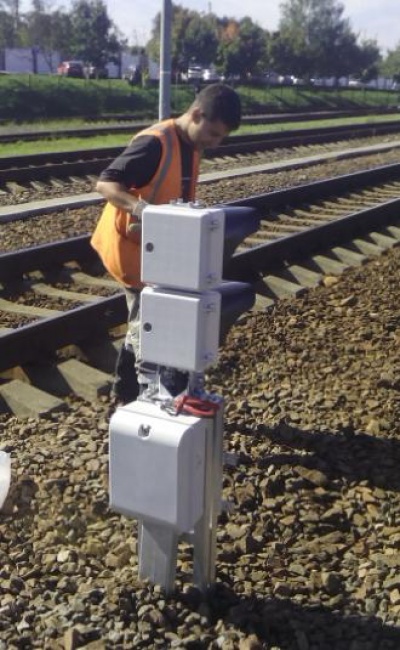

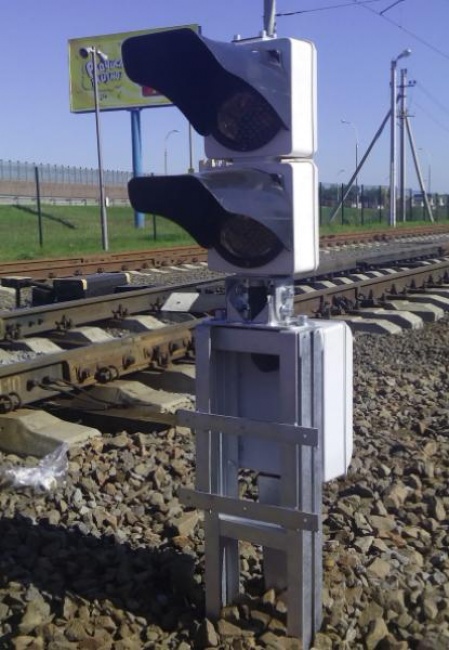

Traffic light dwarf (shunting)
Foto Type Complectation
Net weght, kg
1


1-signal IP65

ЯТВИ.221.02.01.000

IP65 traffic light head 1 pcs., adjusting bracket, shield traffic, base, input protection, fitting assembly, plug, transformer box IP65 (-1) 44
2

2-signals IP65
ЯТВИ.221.02.02.000

IP65 traffic light head 2 pcs., adjusting bracket, shield traffic, base, input protection, fitting assembly, plug, transformer box IP54 (-1) 48
3

3-signals IP65
ЯТВИ.221.02.03.000

IP65 traffic light head 3 pcs., adjusting bracket, shield traffic, base, input protection, fitting assembly, plug, transformer box IP65 (-1 or TЯ-2)

52-63
4

4-signals IP65
ЯТВИ.221.02.04.000

IP65 traffic light head (4 pcs.), adjusting bracket (2 pcs.), shield traffic, base, input protection, pipe assembly (2 pcs.), plug (2 pcs.), transformer box IP65 (TN-2)

67
5

5-signals IP65
ЯТВИ.221.02.05.000

IP54 traffic light head (5 pcs.), adjusting bracket (2 pcs.), shield traffic, base, input protection, pipe assembly (2 pcs.), plug (2 pcs.), transformer box IP54 (TN-2)

71
6

6-signals IP65
ЯТВИ.221.02.06.000

IP54 traffic light head (6 pcs.), adjusting bracket (2 pcs.), shield traffic, base, input protection, pipe assembly (2 pcs.), plug (2 pcs.), transformer box IP54 (TN-2)

75

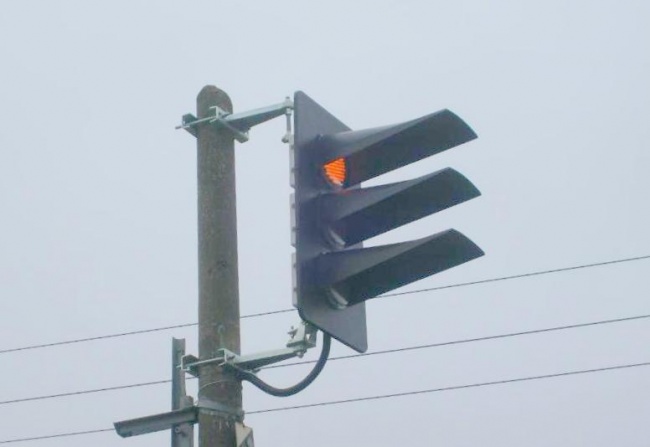

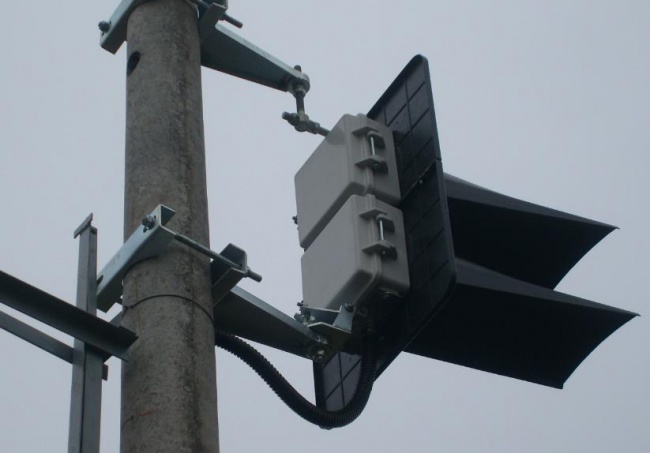

Traffic light mast
Photo Type Complectation Net weght, kg
7   1-signal IP65

ЯТВИ.331.01.000СБ

a metal mast

IP65 traffic head, square shield, visor, fixed on a metal mast

22
8 1-signals IP65

ЯТВИ.331.01.000-01СБ

on reinforced concrete mast

IP65 traffic head, square shield, visor, mounting on reinforced concrete mast

22
9

2-signals IP65 ЯТВИ.331.02.000СБ

a metal mast

IP65 traffic light head (2 pcs.), Square plate (2 pcs.), Visor (2 pcs.), fixed on a metal mast. 30
10

2-signals IP65 ЯТВИ.331.02.000-01СБ

on reinforced concrete mast

IP65 traffic light head (2 pcs.), Square plate (2 pcs.), Visor (2 pcs.), mounting on reinforced concrete mast. 30
11

3-signals IP65 ЯТВИ.331.03.000СБ

a metal mast

IP65 traffic light head (3 pcs.), Square plate (3 pcs.), Visor (3 pcs.), fixed on a metal mast. 40
12

3-signals IP65 ЯТВИ.331.03.000-01СБ

on reinforced concrete mast

IP65 traffic light head (3 pcs.), Square plate (3 pcs.), Visor (3 pcs.), mounting on reinforced concrete mast. 40

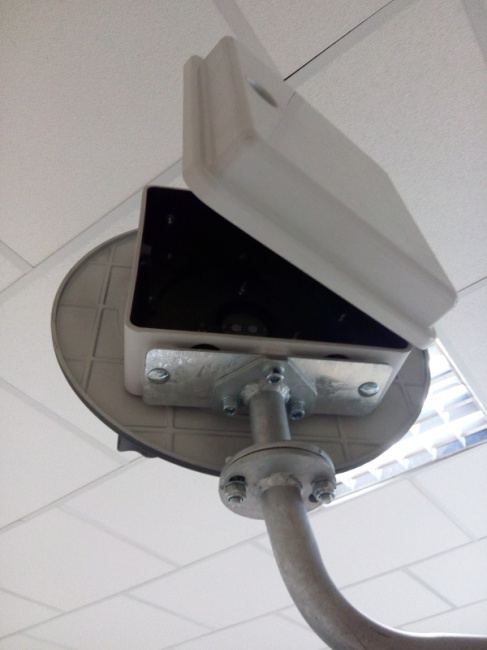

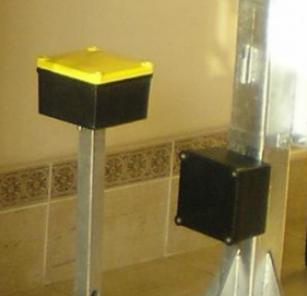

Clutches for cable and railway track boxes IP54 - IP67
1 Coupling UKM-KG-12

Degree of protection not lower than IP65 according to GOST 14254
Overall dimensions UKM-KG-12, mm:
175x175x118 (568 at the counter).
Wall thicknesses from 9 to 15 mm.
4,1 - 14

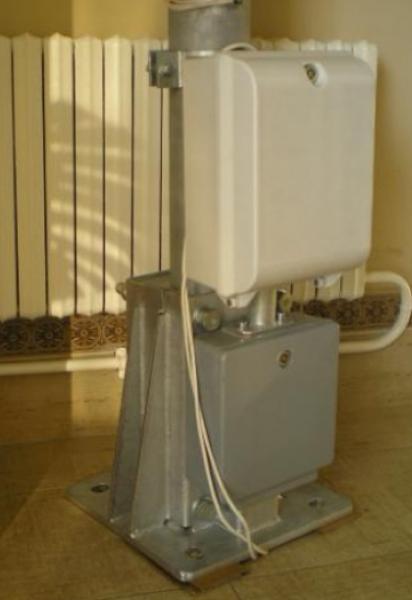

2 Coupling UPM-KG-24 IP65 in the composition with a transformer box IP65 and support for metal masts. Overall dimensions UPM-KG-24, mm:
310x285x110 (550
with a support).
5,4 -18
3

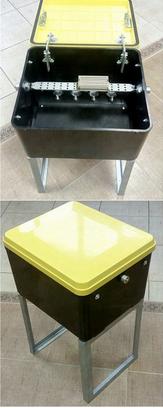

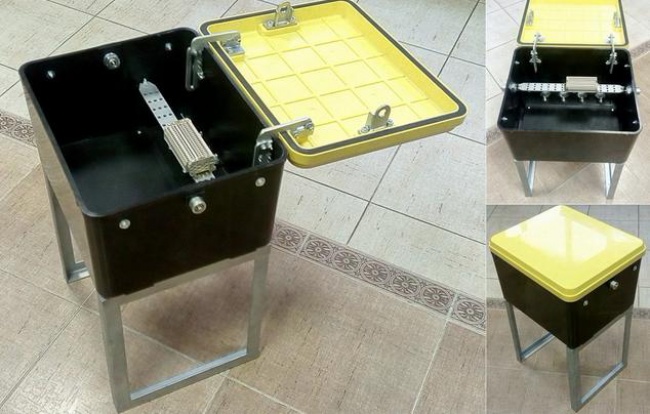

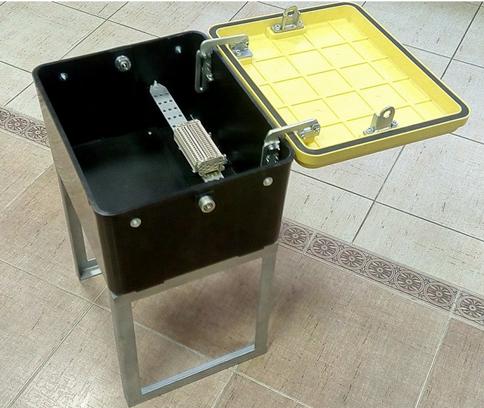

Rail track box.
The degree of protection is not lower than IP65 according to GOST 14254.
Overall dimensions: 540х385х275 (775 with support) mm.
The connecting dimensions are 212x487 mm.
The weight of the empty case and cover is 13 kg. Wall thicknesses from 9 to 15 mm.
24 - 28

Options for delivery of traffic lights: in the collection, in parts, only light head.

Sets of production time traffic lights no more than 2 months. Components for supply is negotiated separately. Perhaps the design and manufacture of boxes or other items made of polyester to your needs. All issues are best clarified by e-mail: market@liplast.by . Best regards.
