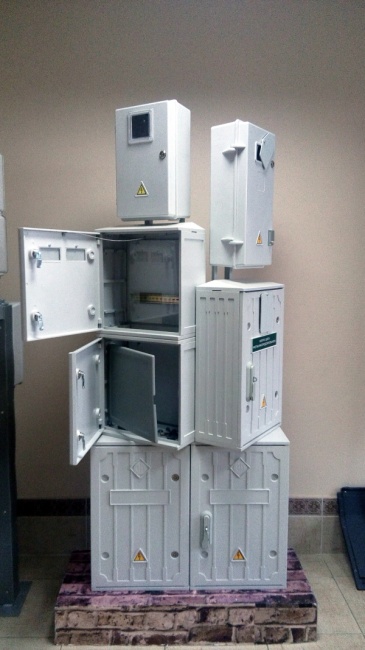

Polyester vandal-proof box and case IP54

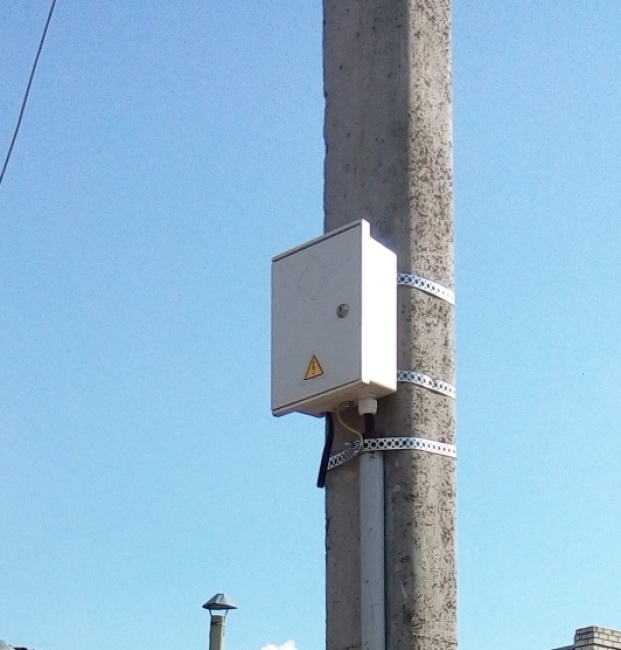

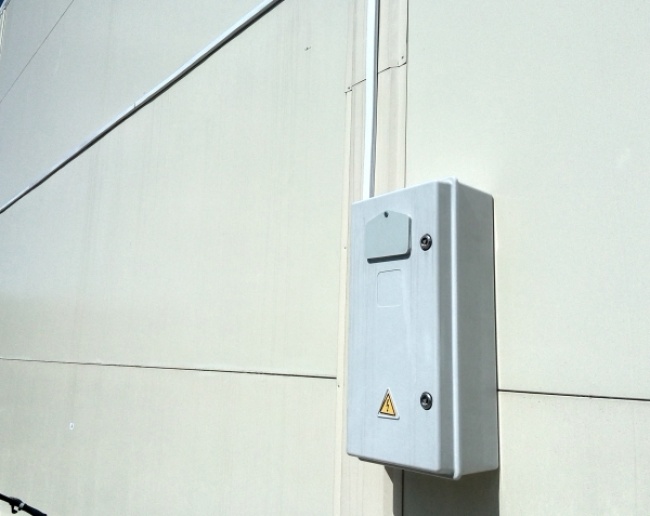

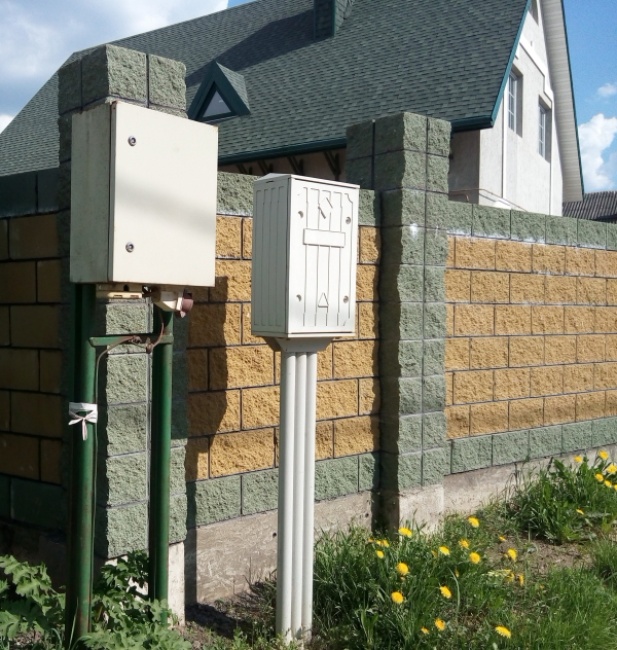

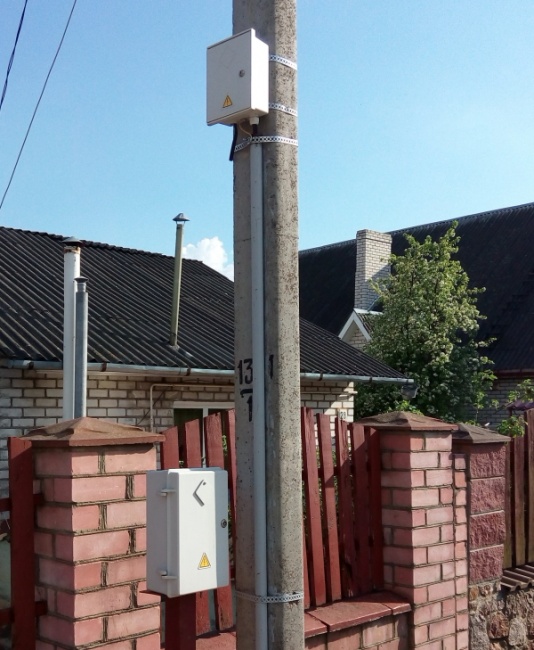

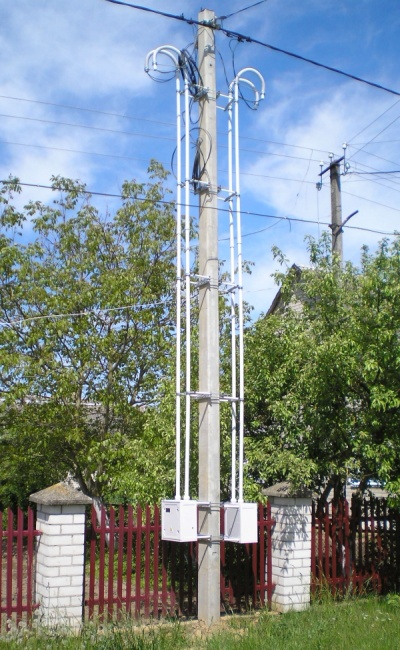

Vandal-proof boxes of SMC-material (glass fiber reinforced composite) are used for indoor and outdoor use in industry, electric power, telecommunications, railway and road transport for the installation of electrical devices and components. In Belarus, the company JCSC "LIPLAST-SPb" only one who is engaged in a complete cycle production of vandal-proof boxes from polyester. Housings are available in sets (according to version), packaged in cardboard boxes.

The boxes are designed in accordance with the specifications BY 500015511.008-2012. All stated specifications are tested at the Belarusian State Institute of Standardization and Certification. The system of management and quality of products from the production of plastics and composite materials meet the requirements of STB ISO 9001-2009.

The main advantages of boxes of polyester in comparison with metal boxes:

  • anti-vandal reinforced design IK10 / protection class IP 54
  • not rust, has a low weight / is not lit.
  • wide operating temperature range from - 50 ° C to + 70 ° C / not fade
  • It transmits a GSM signal / operating time of more 30 years.



  Catalog vandal-proof boxes

Foto Name Size Mounting plate size

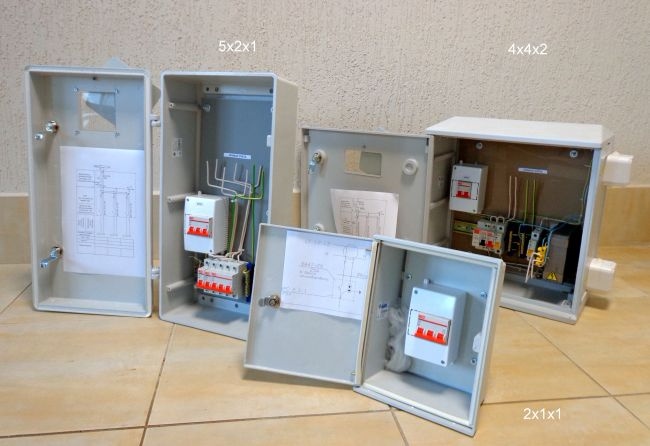

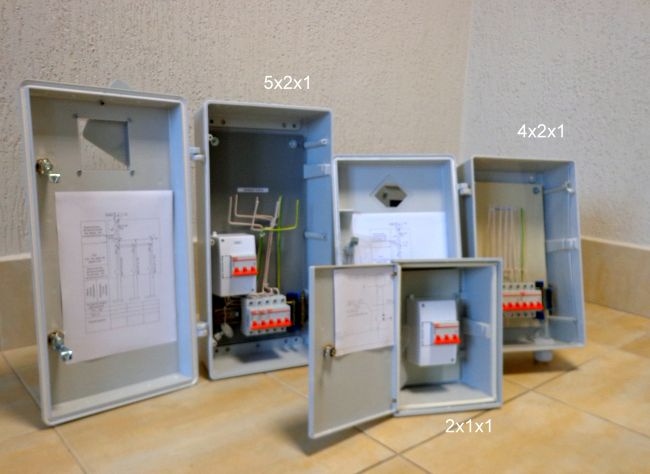

1 Box 2х1х1 IP 54 240х180х110 230х160х4
2 Box 3х2х1 IP54 400х290х173 300х225х4
3

Box 4х2х1 IP 54

Kovera box IP 54

420х260х160 340х225х4
4 Box 4х4х2 IP 54 400х400х200 350х350х4
5


Box 5х2х1 IP 54 540х260х160 460х225х4
6 Box 6х4х2 IP 54 600х400х200 550х350х4
7


Box 12х4х2 IP 54
Vertical modular assembly of 2 or more boxes 6х4х2
1200х400х200 1180х350х4
8 Box 6х8х2 IP 54
Horizontal  modular assembly of 2 or more boxes 6х4х2
600х800х200 440х720х4
9 Box 8х4х2 IP 54
Vertical modular assembly of 2 or more boxes 4х4х2
800х400х200 780х350х4
10 Box 4х8х2 IP 54
Horizontal  modular assembly of 2 or more boxes 4х4х2
400х800х200 350х720х4
11

Big cupboard 10х9х3 IP54

(novelty, production Aug. Sept 2016)

1060x900x300

(one door)

900x800x4
12

Big cupboard 10х6х3, IP54

Big cupboard 10x3x3, IP54

(novelty, production Aug. Sept 2016)

1060x600x300

1060x300x300

900x500x4

900x200x4

13

Big cupboard 10х9х3 IP54

(novelty, production Aug. Sept 2016)

1060x900x300

(two doors)

960x500x4
14

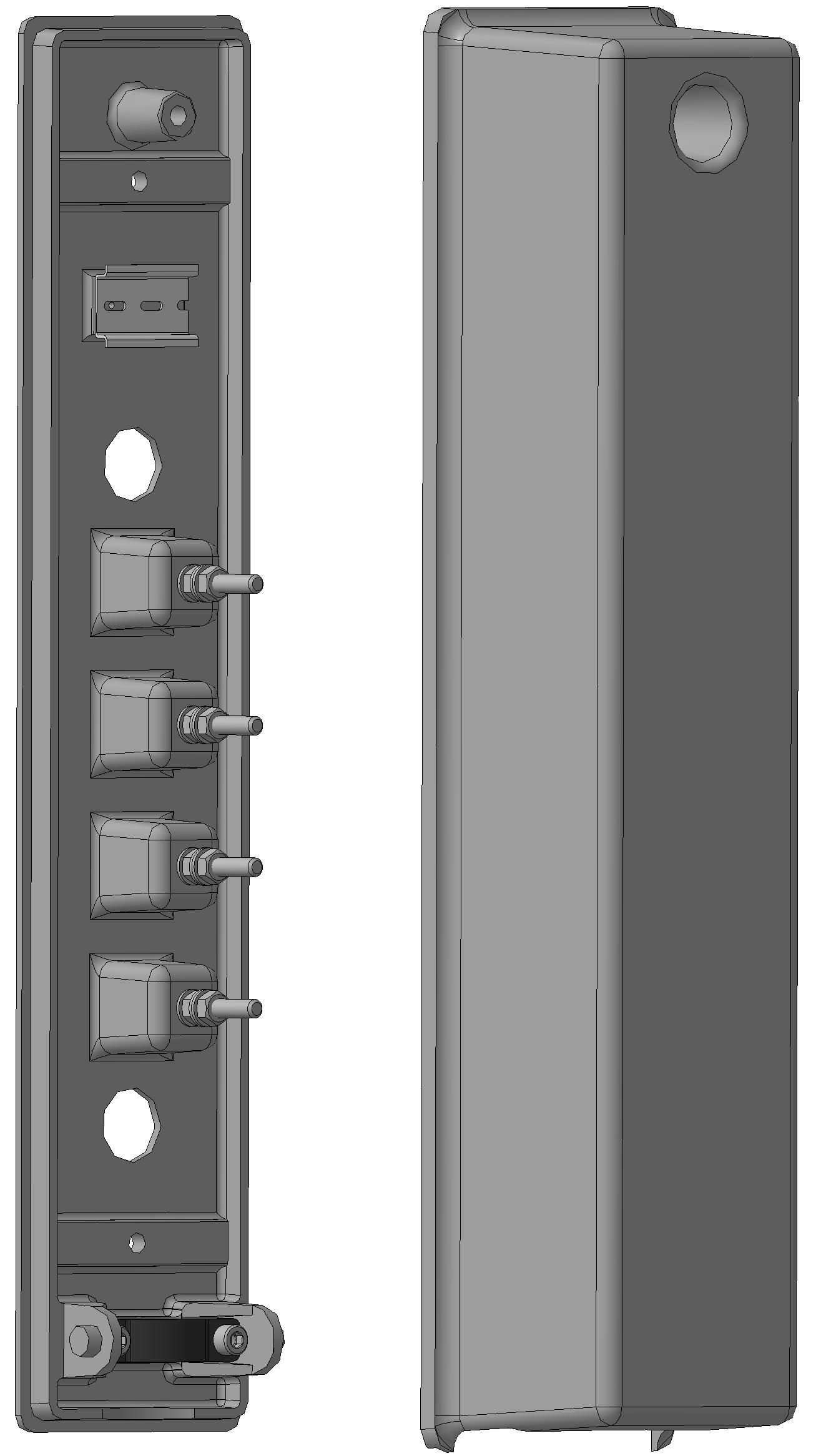

Shield introductory lighting columns

ЩВОО-611.000 IK10

(novelty)

630х152х110 4 insulators

All the boxes are available. Components for supply is negotiated separately. Perhaps the design and manufacture of boxes or other items made of polyester to your needs. All issues are best clarified by e-mail: market@liplast.by . Best regards.
